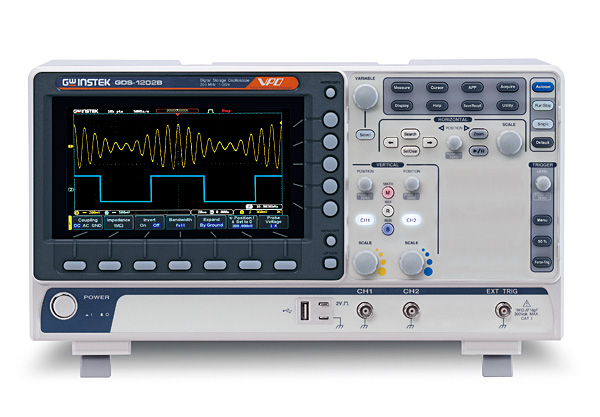

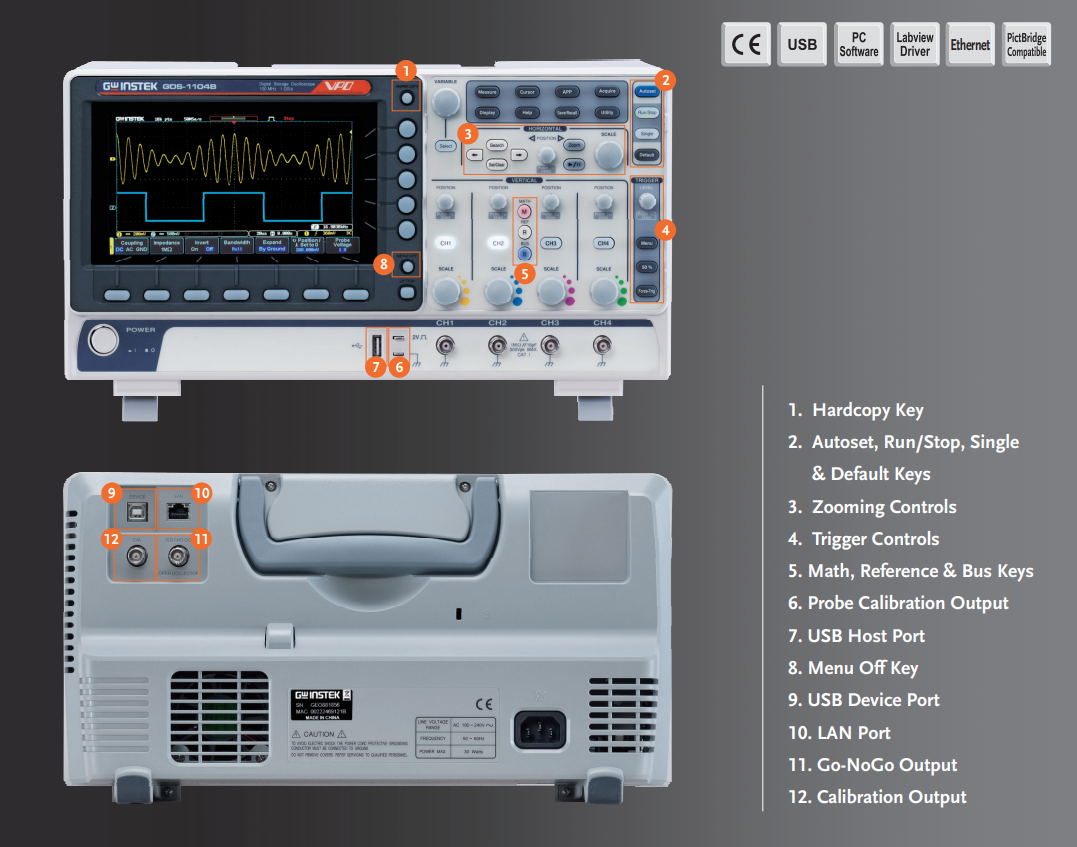

주요 특징

• 50/70/100MHz bandwidth selections, 2ch or 4ch input

• 1GSa/s maximum sampling rate

• 10M maximum memory depth for each channel

• 7” 800 x 480 WVGA LCD display

• 256 color gradient display function to strengthen waveform performance

• 1Mpts FFT frequency domain signal display

• Zero Key function for horizontal time, vertical voltage and triggering

• Compact and innovative exterior design

Digital oscilloscopes have entered an epoch-making generation. Innovative design, compact appearance, and abundant functionalities together forge this simple-in-look oscilloscope a very powerful test and measurement instrument which facilitates engineers to easily solve complex measurement issues. This is the latest definition of digital oscilloscope defined by GDS-1000B. The GDS-1000B series demonstrates the impeccable functionalities with an extremelyordinary pricing, which allows customers to realize the true meaning of bigger bang for the buck. Although, the GDS-1000B series is under the category of general purpose oscilloscope, the full functionalities within this simple-in-look oscilloscope, including parameter measurement, cursor indication, digital voltage meter, and data logging, surpasses the same category 1000 series oscilloscopes in the market. All applications of the GDS-1000B series can be applied to the educational field and the fundamental R&Dunits of the industrial sector.

The GDS-1000B series features three bandwidth selections ─ 100 MHz, 70 MHz, 50MHz and equips with analog signal input terminals by four or two channels ( 50MHz only equipped 4 channels input ). The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently. The waveform update rate is 50,000wfms/s, which helps users to precisely observe the detailed waveform variation. Additionally, 7” WVGA colorLCD display and the 256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation. With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design ─the zero key function, which allows engineers to work more effectively.

For mathematical analysis mode, 1Mpts FFT signal display makes the dull frequency domain signal analysis more delicate. Diversified trigger functions, X-Y mode analysis, and Go/NoGo function arm the GDS-1000B series oscilloscope with higher level measurement technologies. The GDS-1000B series oscilloscope also provides OpenWave connection software, which allows users to conduct waveform observation and data storage controlled by remote PC. Moreover, theinnovative exterior design and compact design also bring much convenience to users. Other diversified and charming multi-functional operation demonstrates the concept of complete technology integration.

Waveform update rate up to 50,000wfms/s and VPO Display Technology

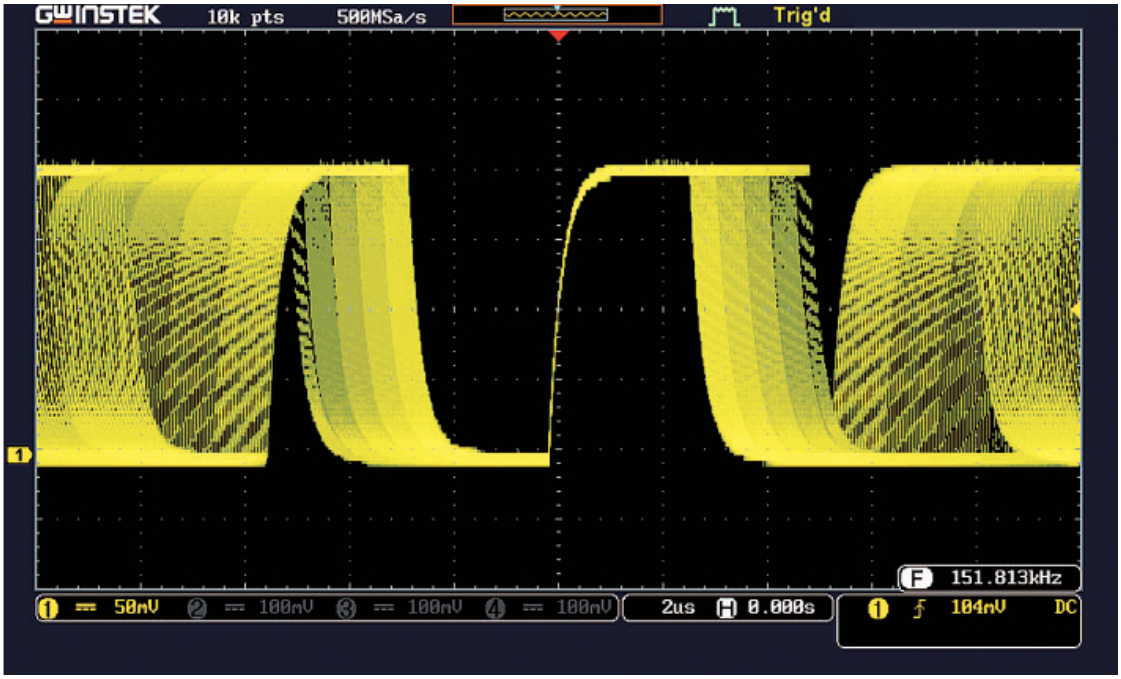

The GDS-1000B series oscilloscope is under the category of general and fundamental oscilloscope by the market segmentation. Nevertheless, the series arms itself with the waveform update rate up to 50,000wfms/s and VPO waveform display technology. Users can input a rapid frequency modulation carrier signal as shown on the diagram. An unsmooth temporarily holding phenomenon will occur while using conventional digital oscilloscopes to measure this signal.As a result, the conventional digital oscilloscopes could not clearly yield the modulation variation process of frequency modulation signals. With the GDS-1000B series oscilloscope, the measurement result will produce not only a smooth waveform modulation variation, but also detailed changes by distinct layers. Engineers could easily grasp the root cause of electric circuits while measuring the unexpected and fast changing signals. The GDS-1000B series is indeed an excellent debugging weapon for the test andmeasurement industry.

256 color gradient display

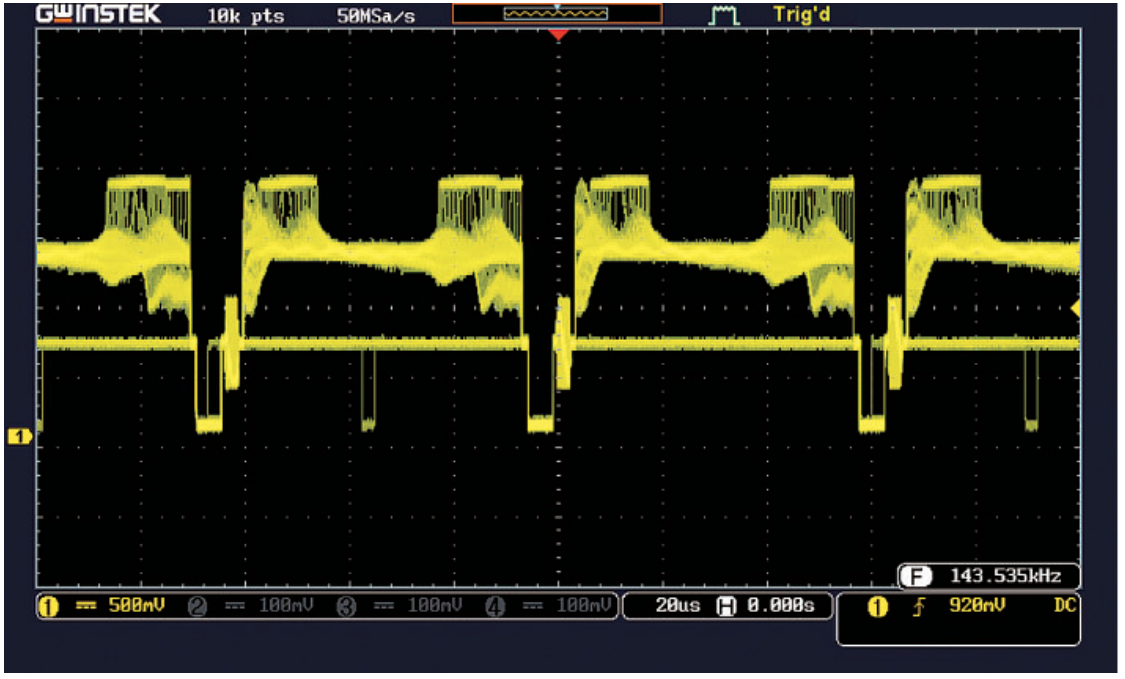

With respect to the waveform display technology, the GDS-1000B series oscilloscope is capable of displaying 256 color gradients which can delineate the profound gradational fluctuations; as if it can recreate the analog oscilloscope display capability. When a multi-layer video signal is input, the GDS-1000B series, with 256 color gradient display, has the ability to precisely reveal the colored burst signal and to show details of layers with the brightness.Hence, the dull monochrome waveform is imbued with vitality, which is precisely the unlimited measurement fascination the GDS-1000B series intents to bring to the general purpose oscilloscope arena.

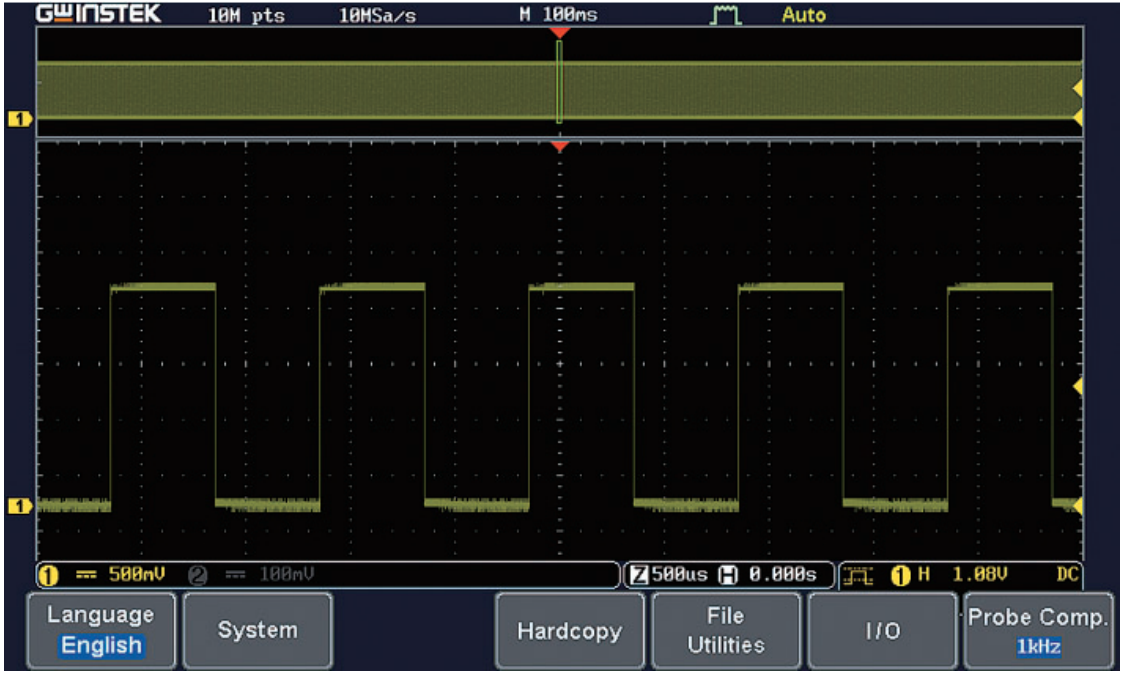

10M memory depth per channel independently

The GDS-1000B series oscilloscope has a powerful and incomparable memory depth for the data retrieving. 10M memory depth per channel independently surpasses the specification of the industry’s 1000 series boundary. 10M memory depth allows users to easily seize the waveform detail while conducting fundamental measurement applications. If a long serial sequent sine waveform is input and the time scale is adjusted to 1mv/div, other 1000 series oscilloscopesfor lack of sufficient memory depth will appear a distorted waveform while enlarging the waveform for its details. The GDS-1000B series while enlarging the waveform to 20ns/div reveals a very clear sine waveform detail which is precisely the true value of the GDS-1000B series oscilloscope.

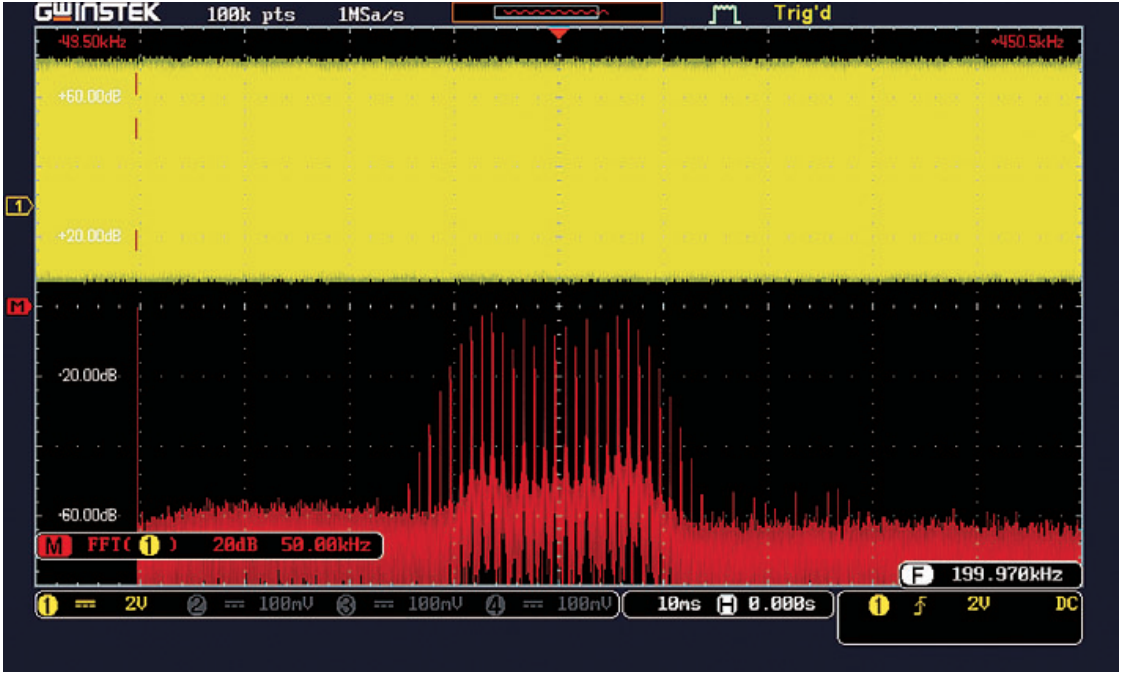

1M FFT mathematical sampling analysis mode

The GDS-1000B series oscilloscope, under the Fast Fourier Transform mathematical analysis mode, is equipped with the 1M memory depth retrieving mode. For the conventional digital oscilloscopes, the FFT mode often has only 1000 point retrieving length; therefore, they can not show the strength distribution of each spectrum quantity under the frequency domain mode. The GDS-1000B series oscilloscope leads the industry to provide the display mode of 1M retrievingpoints, which can clearly show the detail of each spectrum quantity. On top of that, the 50,000 wfms/s waveform update rate augments the FFT analysis mode to be fast and precise as if a real time spectrum analyzer is used. These features substantially elevate oscilloscope’s signal processing capability for the frequency domain analysis. The diagram illustrates a 200 KHz carrier waveform to be modulated as a standard FM signal with 40 KHz and 5 KHz frequency deviation. Since the GDS-1000B series is equipped with1M memory depth, a 5 KHz frequency deviation interval can be clearly revealed that allows engineers to fully grasp the measurement details.

Zoom In/Play and Pause Function

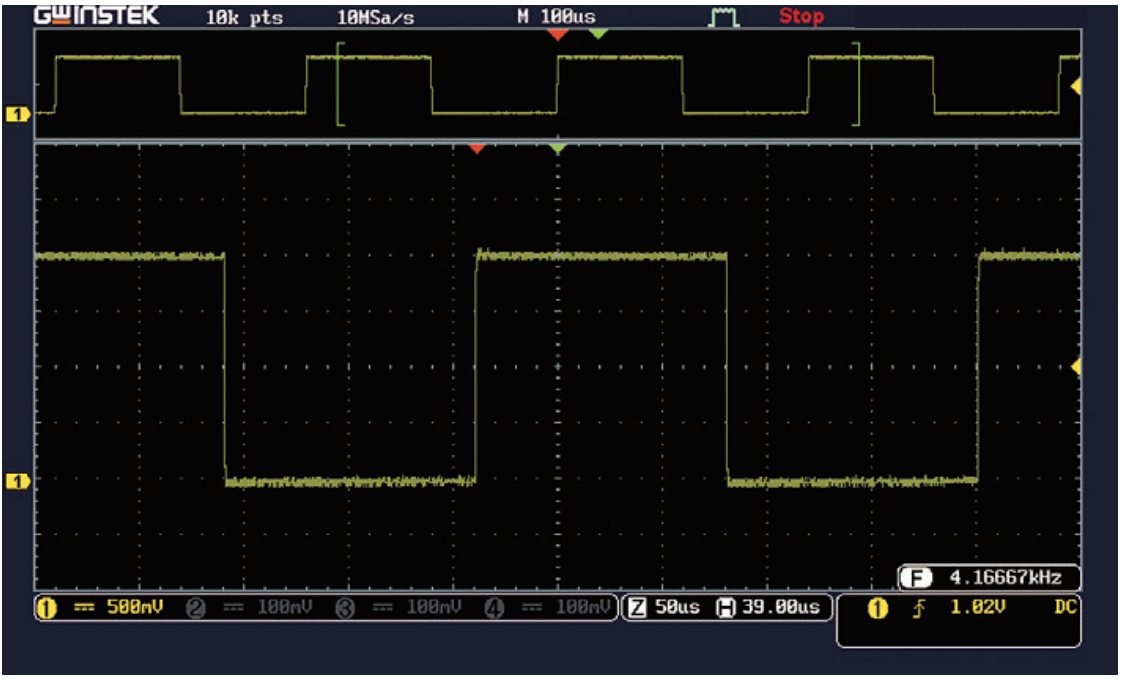

The GDS-1000B series provides engineers with partial waveform zoom in function to observe waveform in great details. The display screen can be split into two windows: the upper window shows waveform data log in a long period of time and the marked vicinity of the waveform needed to be zoomed in; the lower window shows the enlarged partial waveform. The function not only allows engineers to make a comparison but also grasp waveform details in the differenttimeframe. Additionally, the GDS-1000B series also features the play/pause function. For the long waveform observation, the play/pause function facilitates engineers to rapidly skim through the whole section of DUT’s waveforms as well as to swiftly identify waveform’s problems.

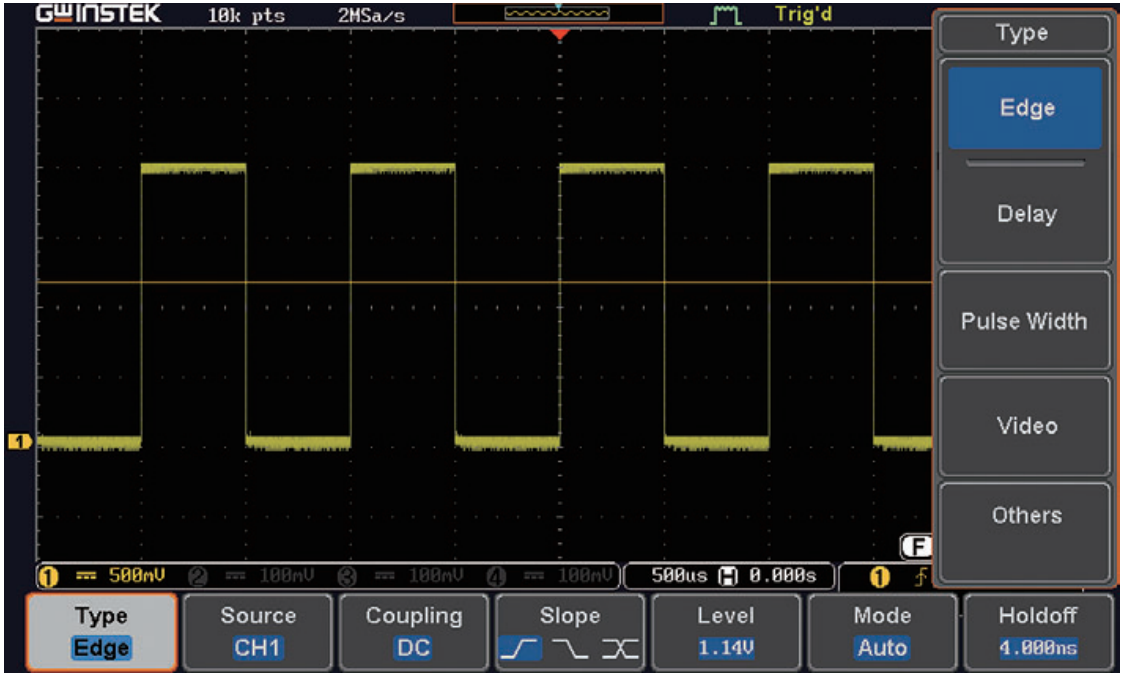

Diversified Trigger Functions

The GDS-1000B series oscilloscope is equipped with diversified trigger functions, including Edge Trigger, Delay Trigger, Pulse Width Trigger, and Video Trigger. Engineers, based upon different waveform measurements, can select different trigger functions to lock waveforms in order to identify the root cause of the complicated circuit designs to save development time and to accomplish tasks.

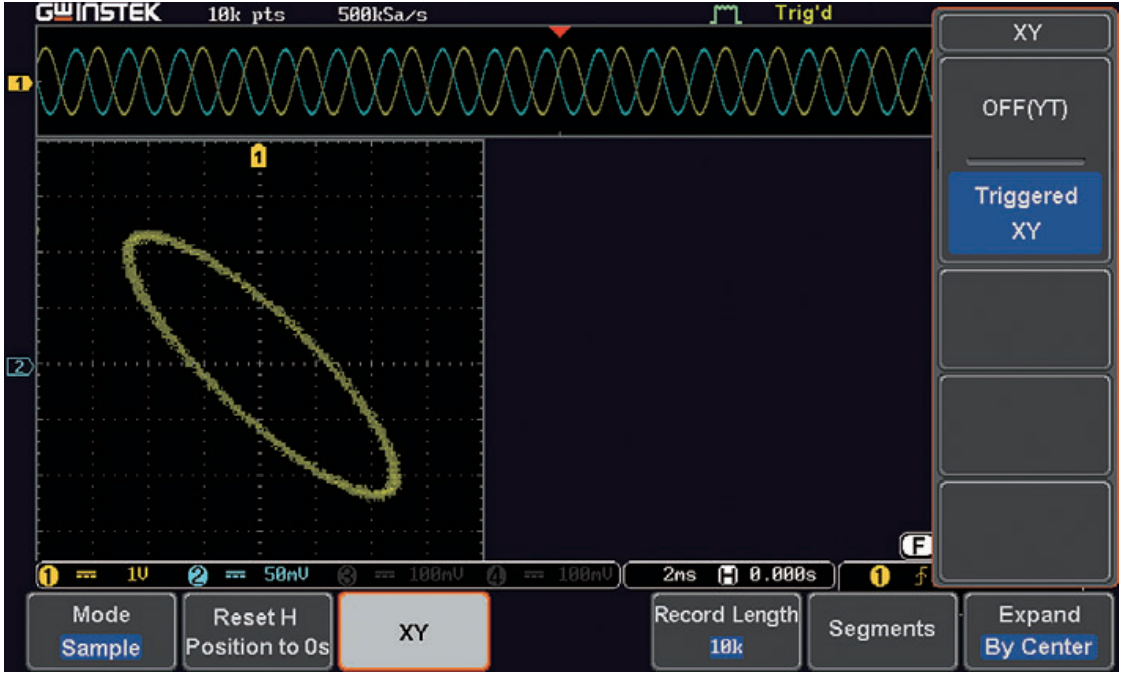

X-Y Mode Display

The GDS-1000B series oscilloscope provides the educational market with some powerful measurement functions. Among them, the X-Y mode display is an excellent example. Teachers and students can use X-Y mode display to conduct Lissajou diagram teaching, which allows users to easily understand the relation between waveforms and frequency while measuring sine waveforms with different frequency by dual channels. For engineers working for the industries, theX-Y mode display can be used to conduct yield rate tests for basic components’ electric conduction and non conduction. Therefore, the X-Y mode display plays an important role in basic oscilloscopes.

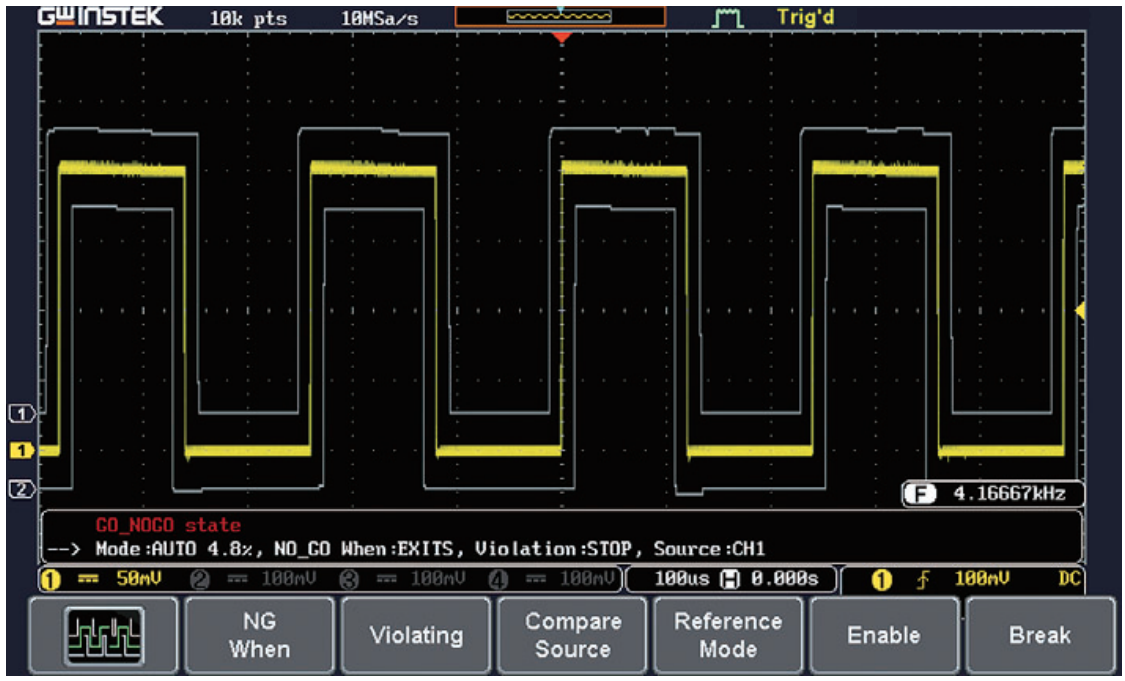

Go/NoGo Function

For the industries, the yield rate determination is very important to mass production. The GDS-1000B series oscilloscope provides the Go/NoGo analysis function to accelerate the yield rate analysis. From the right diagram, the Go/NoGo function provides a standard waveform template for examining DUT’s waveforms. The function can freely adjust the size of template. A defect message will be shown if the DUT’s waveform is abnormal and touches the template.The function is not only very useful measurement tool for production lines but also a very convenient tool for engineers to observe waveforms in a long period of time.

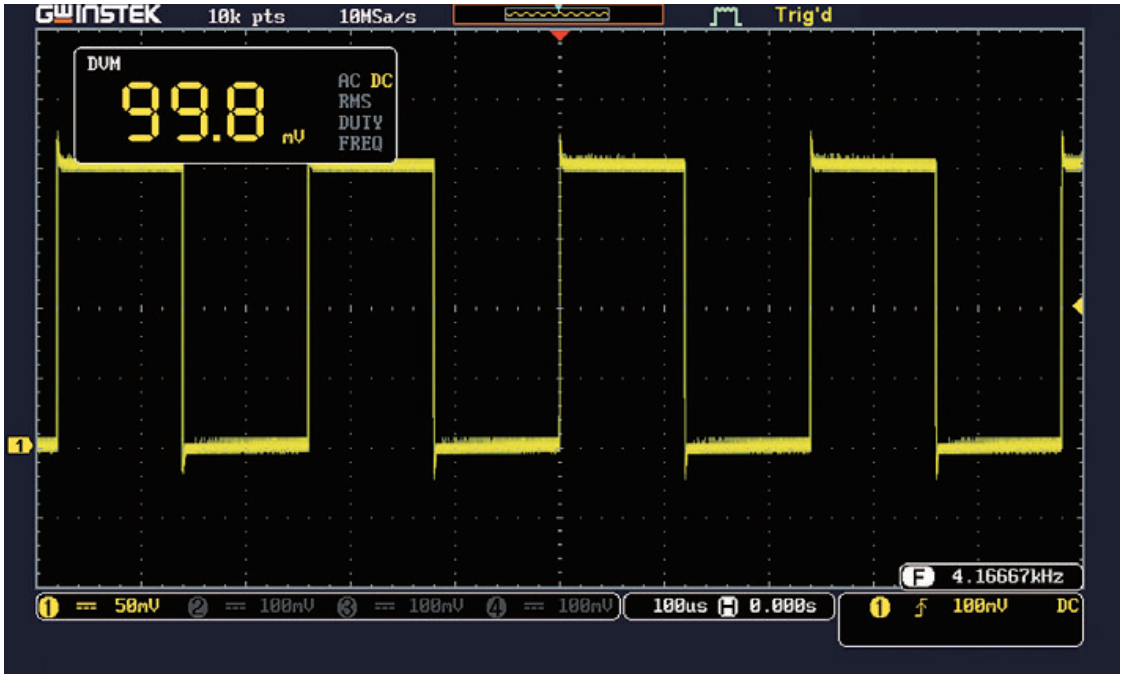

Digital Voltage Meter Function

For electric circuit measurement and debugging, R&D engineers require oscilloscopes as well as basic voltage meters. The GDS-1000B series oscilloscope equips with a digital voltage meter with three-digit voltage value and five-digit frequency value. Engineers, by pressing the option key, can select the digital voltage meter function from the menu to measure DC/AC voltage, duty cycle, and frequency. Engineers can not only measure waveforms but alsomonitor the electric parameters of each component on the circuit board. The function is a very convenient tool.

*Users need to download this application from GW Instek website*

Data Log Function

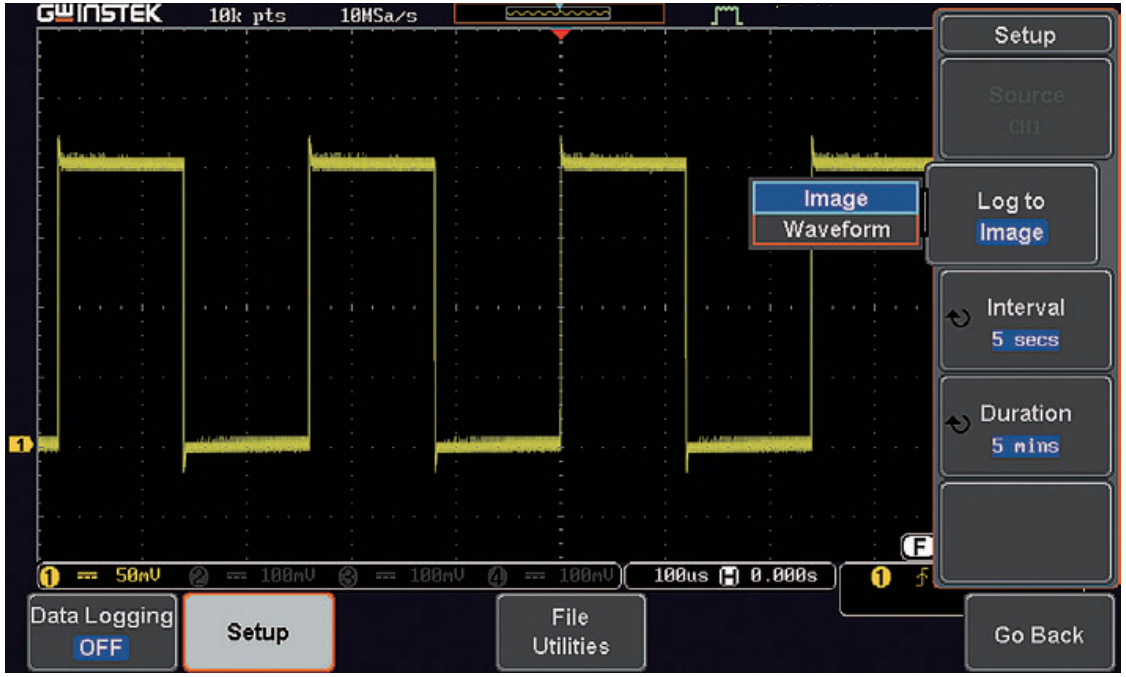

The GDS-1000B series oscilloscope has the data log function option, which allows users to observe and record waveform changes in a long period of time to ensure product’s reliability and stability. The data log function can set data storage time and interval based on the test requirements. Record time can be set from 5 minutes to 100 hours and the interval can be set as 5 seconds the shortest. Data log formats include waveform and point data in CSV file.Data can be saved to USB, GDS-1000B or remote computer via LAN. It is very user-friendly and also an advanced measurement management tool.

*Users need to download this application from GW Instek website*

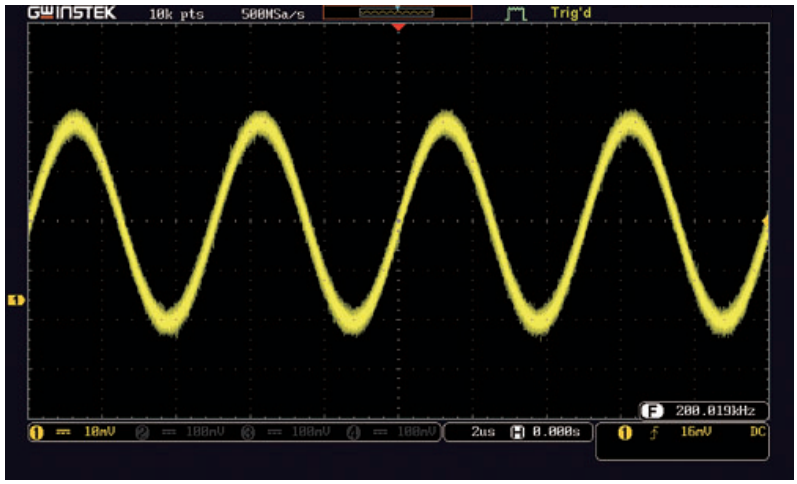

Digital Filter Function

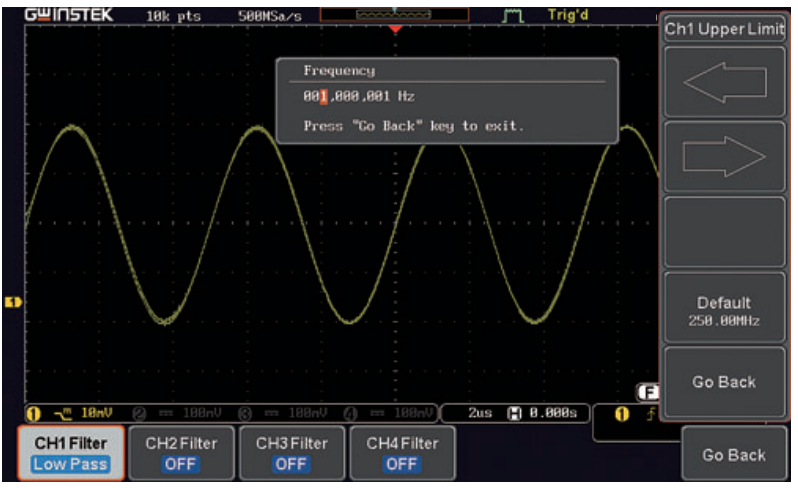

In electric circuit tests, engineers are often troubled by noise interference while measuring signals. The GDS-1000B series oscilloscope provides the digital filter function option, which can be set as high pass or low pass filter. The filter frequency can be adjusted according to the requirements. The filter parameters of each channel can also be set. The tracking on function can be used to set same filter frequency for all channels.

*Users need to download this application from GW Instek website*

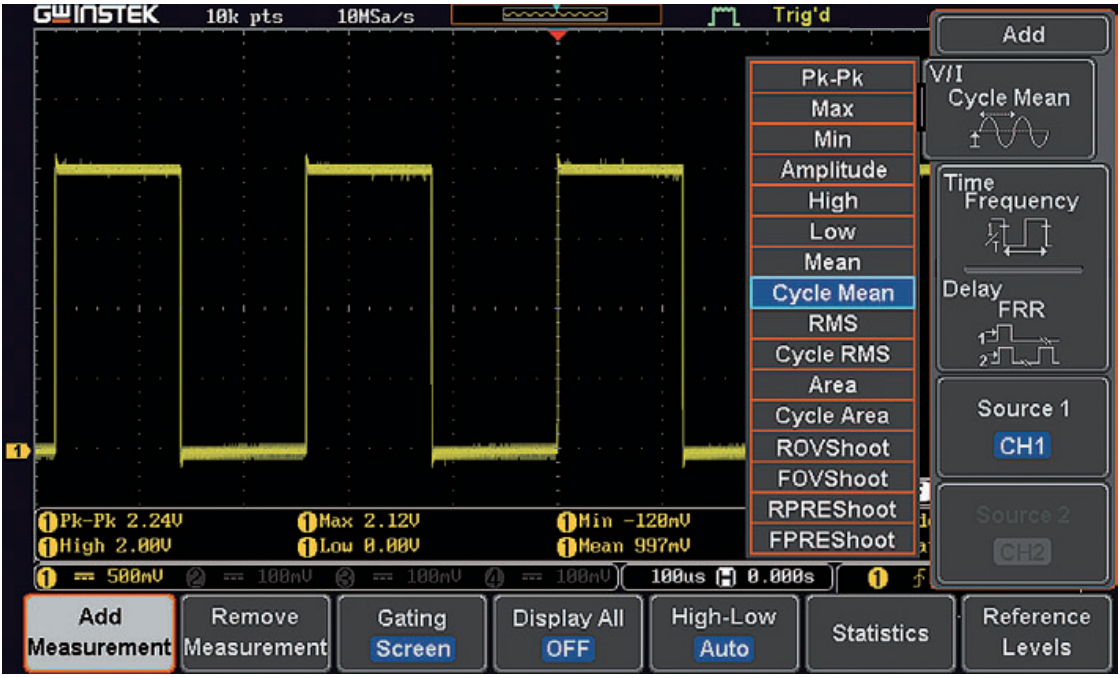

36 Measurement Parameter Selections

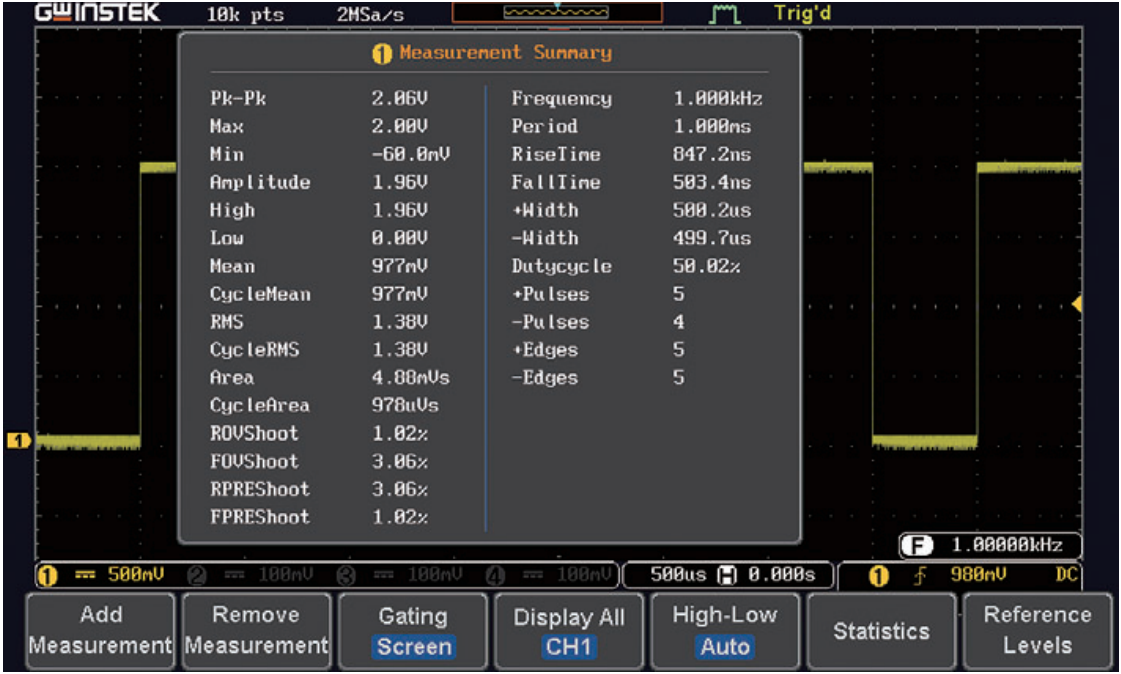

The GDS-1000B series oscilloscope is equipped with 36 different automatic measurement parameter functions. Users, after obtaining measured waveforms, can select different measurement parameters from Measure key according to different measurement requirements. The GDS-1000B series shows simultaneously eight sets of different measurement parameters on the bottom of the display screen. Users can also select to show all parameters if the preset eight setsare insufficient. Once the selection is made, all 36 measurement parameters will be shown on the center of the display screen. This is a very convenient measurement tool for students writing dissertations or engineers writing reports.

OpenWave Connection Software

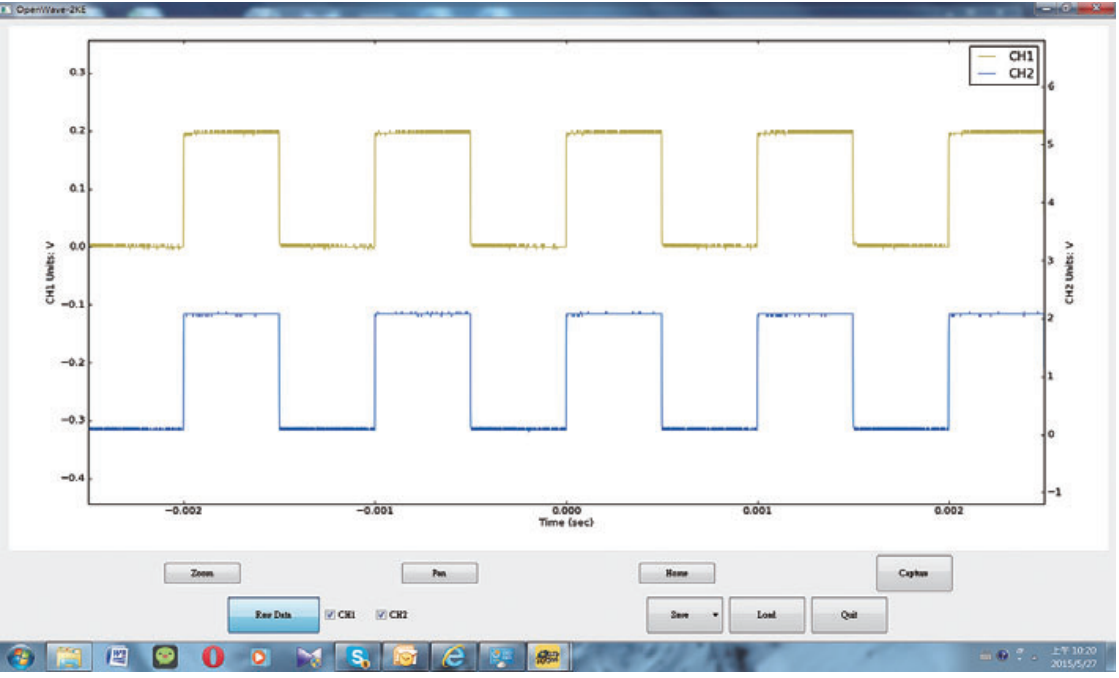

The GDS-1000B series oscilloscope, via the OpenWave connection software developed by GW Instek, can connect with the PC. Users, after installing USB driver under Windows interface, can connect GDS-1000B with the PC through USB cable and OpenWave software. Waveform interpretation and retrieval can be done from the PC end. Data retrieval and storage can better facilitate users in processing analysis. OpenWave connection software is indeed a very powerfultool for engineers to compile reports or to integrate systems.

제품 사양

GDS-1072B

GDS-1074B

GDS-1102B

GDS-1104B

수직

채널

2CH+EXT

4CH

2CH+EXT

4CH

대역폭

DC~70MHz(-3dB)

DC~100MHz(-3dB)

상승시간

5ns

3.5ns

대역폭 제한

20MHz

20MHz

수직 분해능

8비트@1M : 1mV~10V

입력 커플링

AC, DC, GND

입력 임피던스

1MΩ // 16pF

DC 이득 정확도

±3%

극성

Normal, Invert

최대 입력 전압

300Vpk, CAT I (300Vpk, CAT II withGTP-070A-4/100A-4 10:1 probe)

오프셋 위치 범위

±1.25V

1mV/div

±2.5V

2mV/div~100mV/div

±125V

200mV/div~10V/div

파형 신호 처리

+, -, ×, ÷, FFT, FFTrms, 사용자정의 수식

FFT 분해능 : 1Mpts, FFT : 스펙트럼 진폭. FFT 수직 스케일 :Linear RMS/dBV RMS, FFT 윈도우 : 직각/해밍/해닝/블랙맨-해리스

트리거

소스

CH1, CH2, CH3*, CH4*, Line, EXT**

* : 4채널 모델만 지원, ** : 2채널 모델만 지원

모드

Auto (100ms/div 보다 느릴 때 Roll 모드 지원),Normal, Single

유형

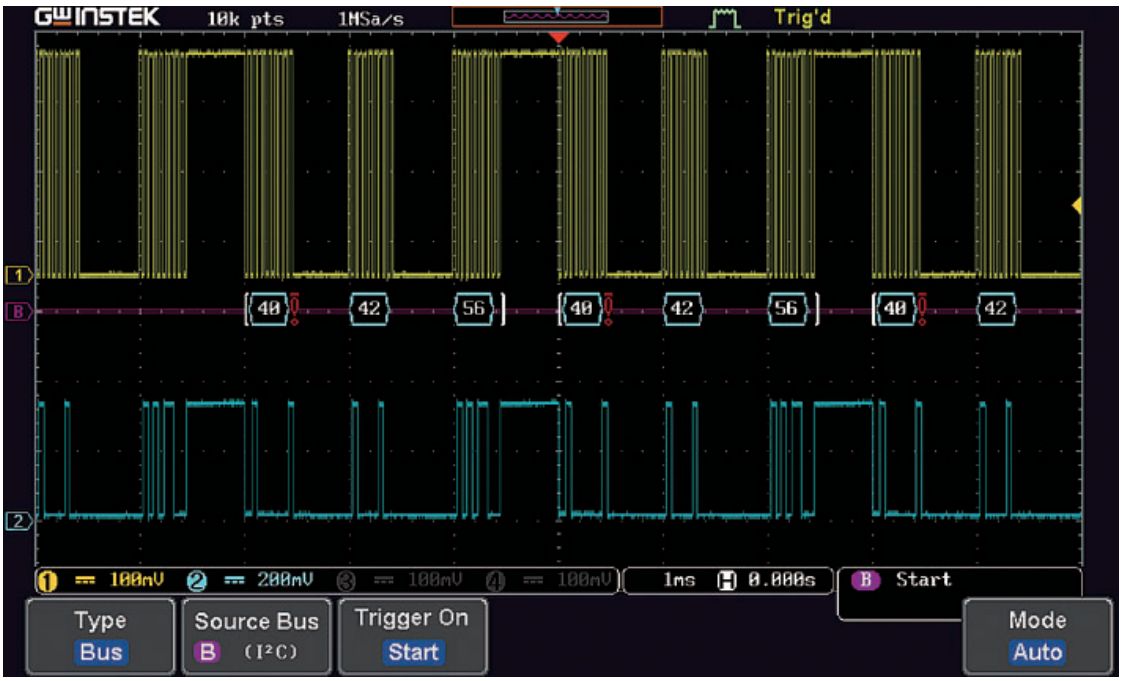

Edge, Pulse Width(Glitch), Video, Pulse Runt,Rise & Fall(Slope), Alternate, Time out, Event-Delay(1~65,535 events),Time Delay(4ns~10s), Bus

홀드오프 범위

4ns~10s

커플링

AC, DC, LF rej., HF rej., Noise rej.

감도

1div

EXT 트리거

범위

±15V

감도

약 100mV

DC~100MHz

약 150mV

100MHz~200MHz

입력 임피던스

1MΩ±3%, ~16pF

수평

타임 베이스 범위

5ns/div~100s/div (1-2-5 증가)

ROLL 모드 : 100ms/div~100s/div

Pre-트리거

최대 10div

Post-트리거

최대 2,000,000div

정확도

≥1ms 간격에서 ±50ppm

샘플링 속도 (RTS)

최대 1GSa/s

레코드 길이

최대 10Mpts

수집 모드

Normal, Average, Peak Detect, Single

피크 검출

2ns (typ.)

평균

2~256 선택 가능

X-Y 모드

X축 입력

CH1; CH3*

* : 4채널 모델만 지원

Y축 입력

CH2; CH4*

* : 4채널 모델만 지원

위상 변이

±3˚

@ 100kHz

커서 및 측정

커서

진폭, 시간, 게이팅; 단위 : 초(s), Hz(1/s), 위상(도), 비율(%)

자동 측정

36종류 : Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS,Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot,Frequency, Period, Rise Time, Fall Time, +Width, -Width, Duty Cycle, +Pulses,-Pulses, +Edges, -Edges, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase

커서 측정

커서 간 전압 차이(△V), 커서 간 시간 차이(△T), 주파수 측정(1/△T)

자동 카운터

6디지트, 범위 : 최소 2Hz~ 지원대역폭

오토셋

모든 채널의 수직, 수평 및 트리거 시스템이 자동 설정

설정 저장

20세트

파형 저장

24세트

디스플레이

유형

7인치 TFT 컬러 LCD

해상도

800x480 (WVGA)

보간

Sin(x)/x

파형 표시

도트, 벡터, 가변 지속(16ms~4s), 무한 지속

파형 업데이트 속도

최대 50,000wfm/s

눈금

8 x 10 div

인터페이스

USB 포트

USB 2.0 고속 호스트 포트, USB 2.0 고속 디바이스 포트

LAN 포트

RJ-45 커넥터, 10/100Mbps with HP Auto-MDIX

GDS-1074B/1104B 모델만 지원

Go/NoGo BNC

최대 5V/10mA TTL 오픈 콜렉터 출력

Kensington 잠금

후면 패널 보안 슬롯이 표준 Kensington 스타일 잠금 장치에 연결

기타

입력 전원

AC 100V~240V, 50Hz~60Hz, 자동 선택, 소모 전력 : 30W

다국어 메뉴

지원 (한국어 포함)

온라인 도움말

지원

치수 및 무게

380(W) x 208(H) x 127.3(D) mm, 약 2.8kg

사양 만족 조건 : 30분 이상 예열  후/+20℃~+30℃

기본 액세서리

사용 설명서 x 1, 전원 코드x 1

GTP-070B-4

70MHz(10:1/1:1) 수동 프로브, GDS-1072B/GDS-1074B (채널 당 1개)

GTP-100B-4

100MHz(10:1/1:1) 수동 프로브, GDS-1102B/GDS-1104B (채널 당 1개)

옵션 액세서리

GDB-03

오실로스코프교육 & 트레이닝 키트

GTL-246

USB 케이블, USB 2.0, AB 타입, 1200mm

GTL-110

테스트 리드, BNC-BNC 헤드

주문 정보

GDS-1104B

100MHz, 4CH, 1GSa/s,10Mpt 디지털 스토리지 오실로스코프

견적문의​​​

GDS-1102B

100MHz, 2CH, 1GSa/s,10Mpt 디지털 스토리지 오실로스코프

견적문의​​​

GDS-1074B

70MHz, 4CH, 1GSa/s,10Mpt 디지털 스토리지 오실로스코프

견적문의​​​

GDS-1072B

70MHz, 2CH, 1GSa/s,10Mpt 디지털 스토리지 오실로스코프

견적문의​​​

옵션 액세서리

GDB-03

오실로스코프교육 & 트레이닝 키트

견적문의​​​

GTL-246

USB 케이블, USB 2.0, AB 타입, 1200mm

견적문의​​​​

GTL-110

테스트 리드, BNC-BNC 헤드

견적문의​​​​
